Rpm-Triggered Activation Switch De-Rpm2

Description

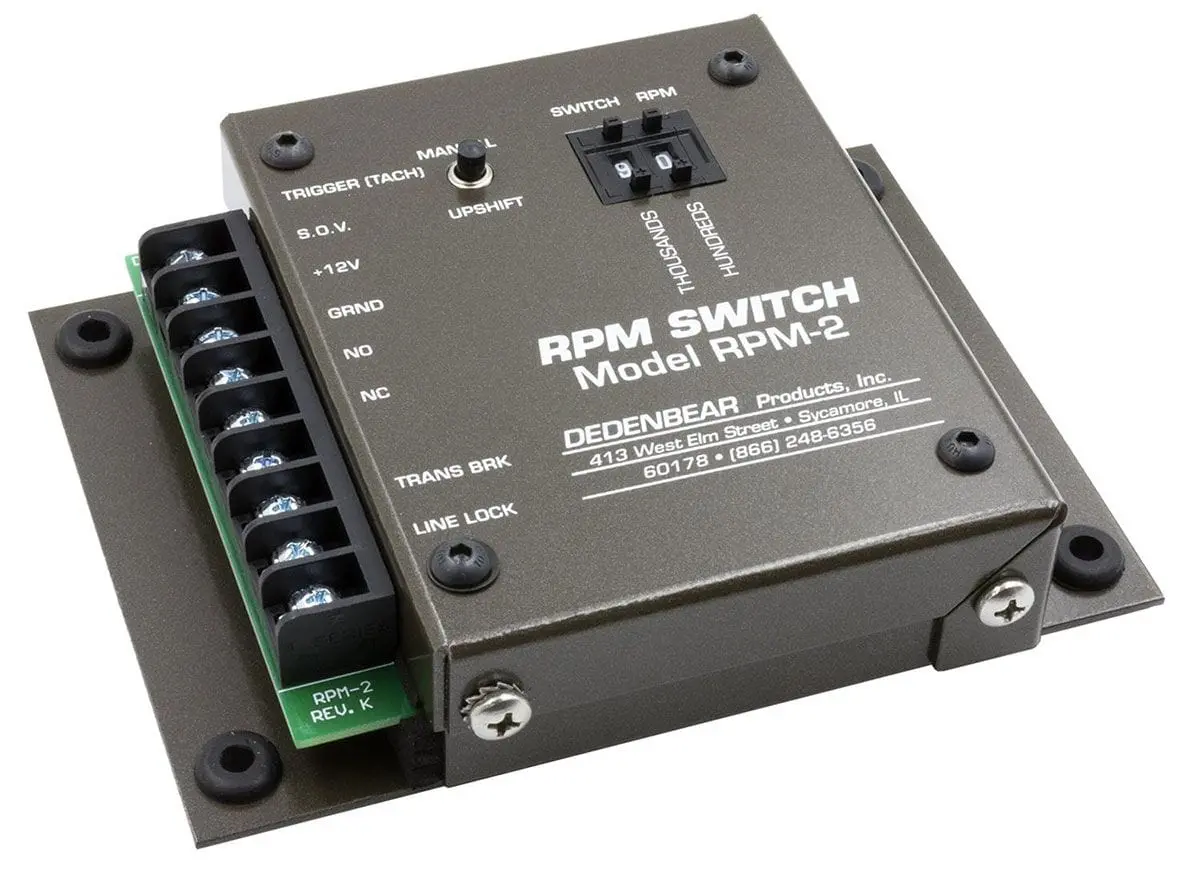

RPM Activated Switch

DE-RPM2

-RPM2

RPM activated switches are nothing new, but for the price, you wouldn’t expect this kind of accuracy! This box has been refined to an exact science. Change your shift point in 100 rpm increments by simply pressing the thumb-wheels No more fumbling around looking for “chips”. Repeatability of +/- 1 rpm, means each shift, each pass will be virtually identical. Works with any MSD/Electronics ignition system. (Magnetos too with our p/n PG8 pulse generator)Features:Normally Open and Normally Closed output terminalsPush-button thumb-wheels for quick, easy rpm settings – 9,900 rpm max.100 rpm incrementsManual upshift button to shift early or just for testing in the pitsBuilt in time delay to prevent false shifting off the lineDisable circuit to prevent shifting during the burnoutWiring diagrams included for most automated shifters, air & electric10 amp maximum output12 volt compatible5.25″W x 4.25″H x 1.25″D
